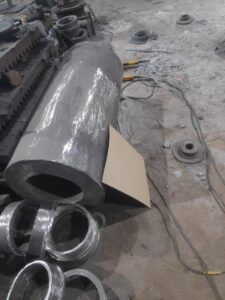

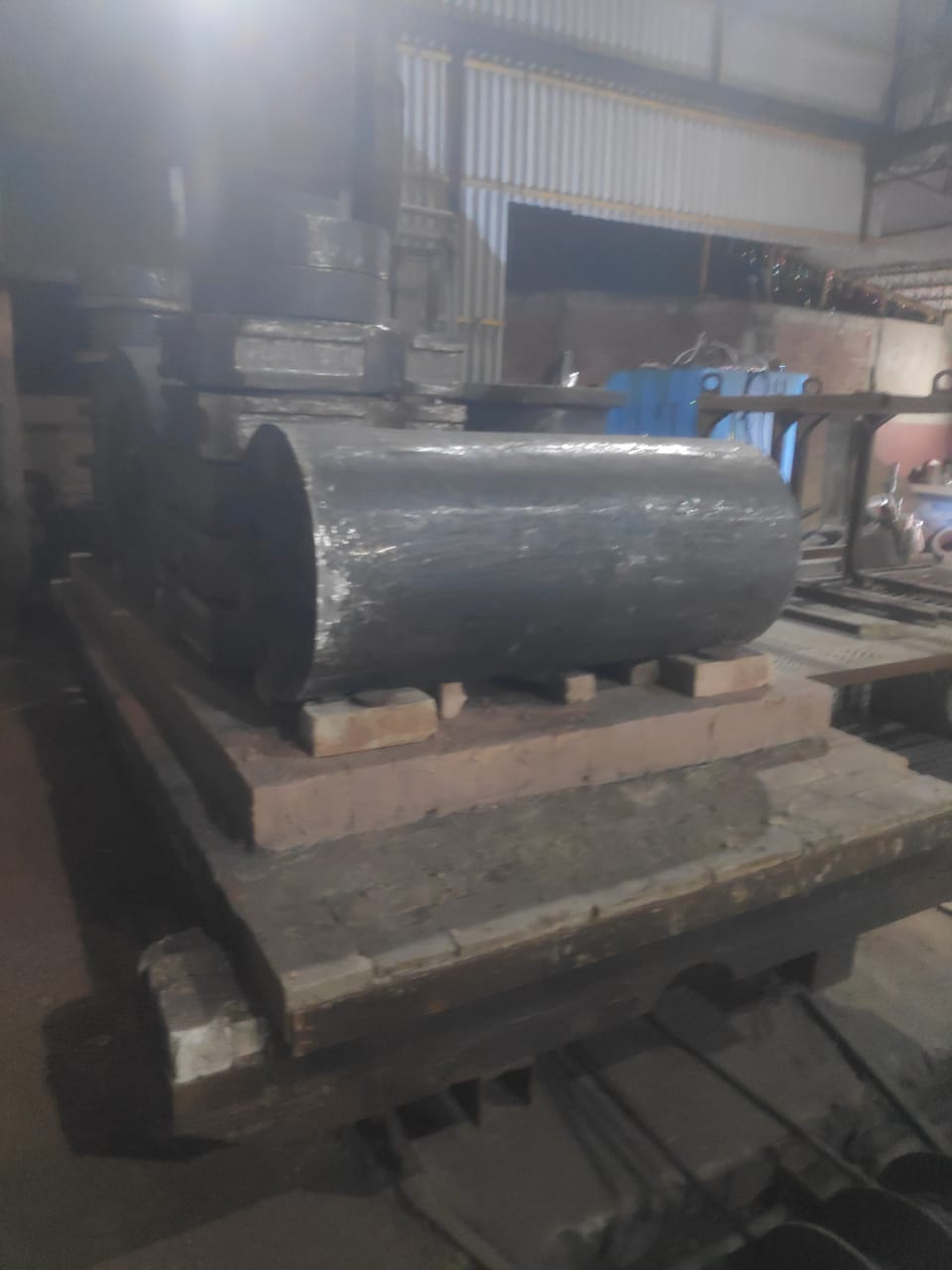

Rope Drum Casting

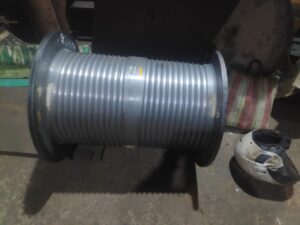

This is a grooved winch drum, also known as a rope drum or crane drum. It is a critical component used in winches, cranes, and other lifting and towing mechanisms. The grooves are machined into the drum’s surface to guide the wire rope as it winds and unwinds.

The purpose of a grooved drum is to:

• Ensure smooth spooling:The grooves prevent the wire rope from tangling, overlapping, or getting crushed, which is a common problem with smooth drums.
• Extend rope life:By guiding the rope properly and evenly distributing the load across each layer, grooved drums can significantly reduce wear and tear on the wire rope, increasing its lifespan.
• Improve safety:Proper spooling and load distribution reduce the risk of rope damage and failure, which improves the overall safety of lifting operations.
• Increase efficiency:It allows for controlled and precise load placement, which is especially important in heavy-duty, multi-layer applications.

Grooved drums are widely used in various industries, including construction, marine and offshore, mining, and shipping. They are often made from materials like carbon steel, alloy steel, or cast iron.
